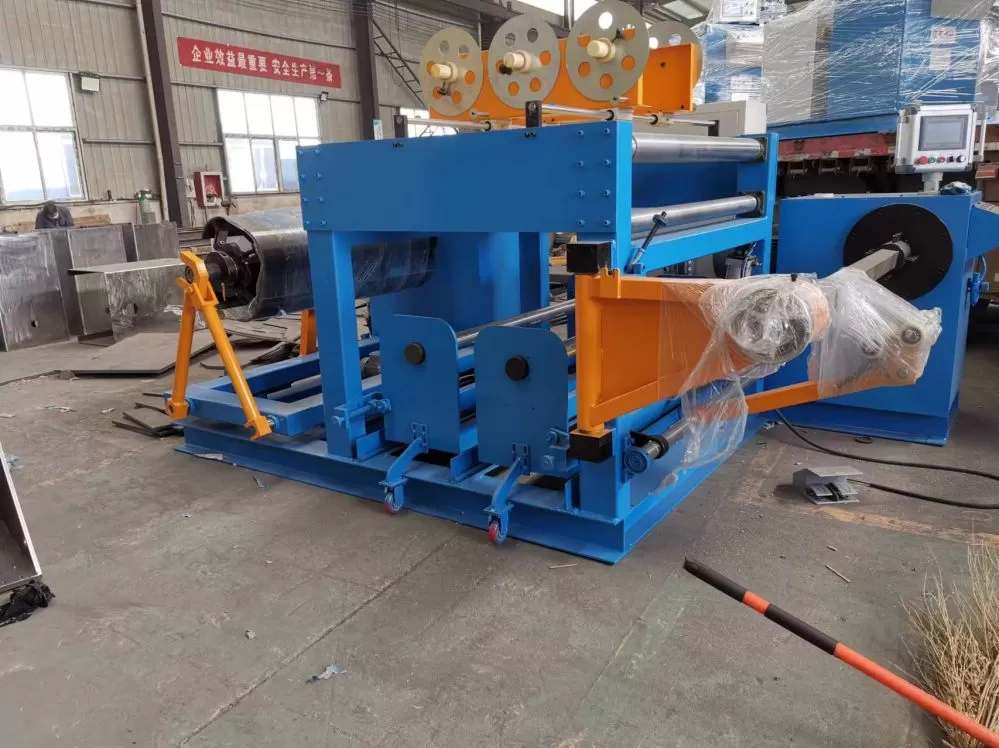

BRJ-1400 变压器箔绕机

BRJ-1400Transformer foil winding machine

概述：

箔式线圈是以不同厚度的铜箔或铝箔为导体，以宽带状的绝缘材料为层间绝缘，以窄带状的绝缘材料为端绝缘，在箔式绕线机上一次完成卷绕，形成线圈内外侧引线的焊接及外表面包扎。本机为生产此类电器产品部件的必备设备。

summery

Foil coi uses different thickness of copper or aluminum foil as the conductor,uses insulating materials of wide stripforlayerinsulation,take insulating materials of narrow strip as end

insulation,finish winding open time in foil winding machine,form foilcoil,meanwhile complete the coi inside and outside of thelead welding and surface dressing

This machine is the necessary equipment for producing such appliances parts

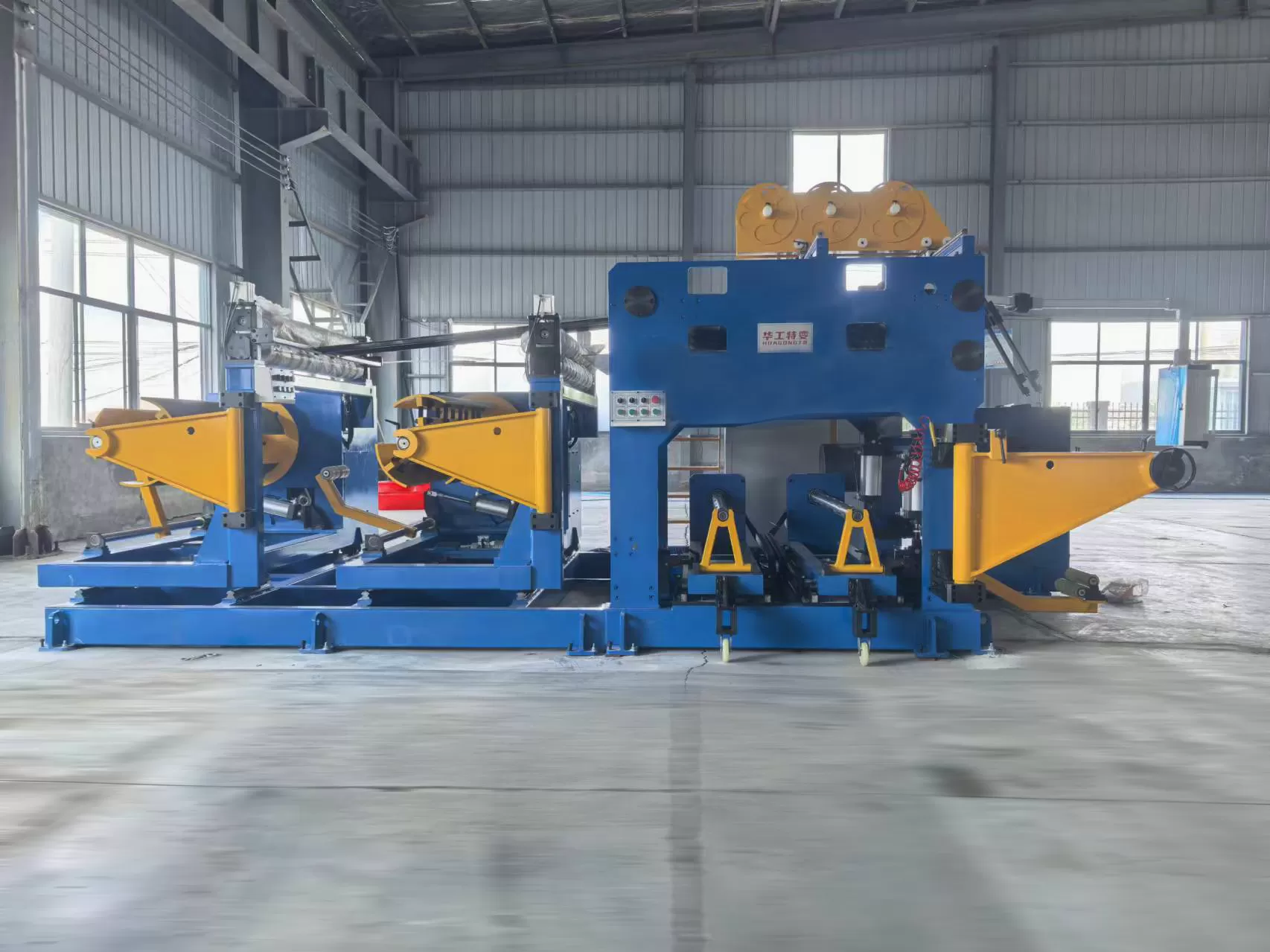

设备特点Features

1.本箔绕机结合瑞士杜波依及德国BR 结构优点设计完成，外观大气，实用尚属国内第一家。

2.本箔绕机张力采用油气混合张力，避免了因为气压不稳定产生的张力时大时小问题，尚属于国内第一家。

3. 层绝缘具备点动纠偏功能，无需人工手动摇动手柄。

4.纠偏采用光电感应，伺服电机做动力。纠偏精度达到±0.4mm

5.焊接压板底部独特的双冷却水管，大大降低了冷却时间。

Equipmentcharaceristics:

1.The foil winding machine combined with Tuboly AGin accordancewith the advantages andGermany BR structure design completed,the atmosphere,practical is the first company in China

2.The tensionof the oil and gas mix foil winding machine tension,avoids all kinds of problems raises by unstable air pressure.It is thefirst company that solved these problems in China

3.Layer insulation is a pointing correction function,without manual shaking handles.

4.Deviation correction uses photoelectricsensor,servo motor power.Deviation correction accuracy of ±0.4mm

5.Welding clamp at the bottom with unique dual colingwater pipes greatly reduces the cooling time.

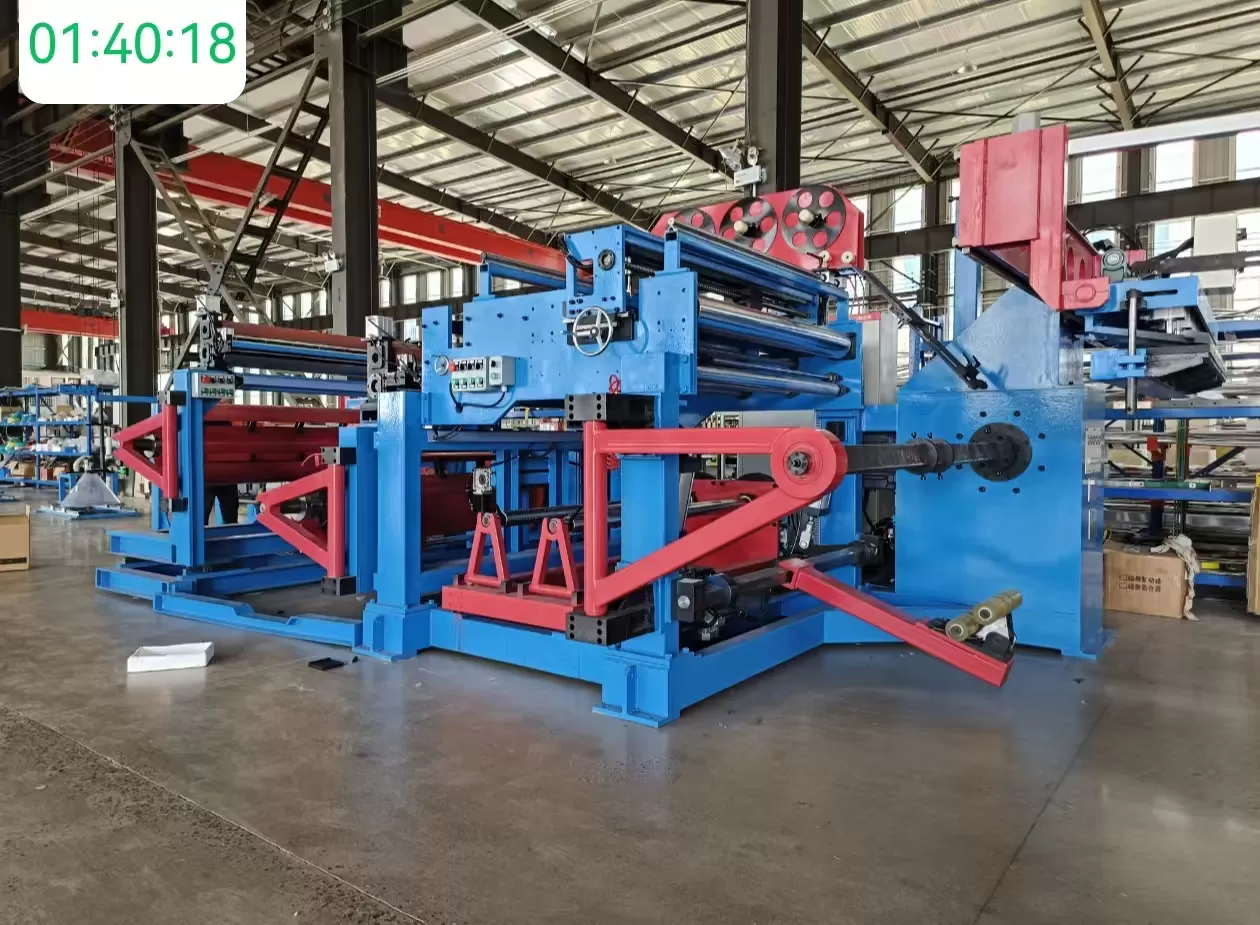

高低压箔绕机800-16000型智能控制(pic1)

主要技术参数

Main technical parameters

数型号	BRJ-800	BRJ-1100	BRJ-1400	BRJ-1600
线圈加工范围Range of coil processing
轴向长度Axiallength	800mm	1100mm	1400mm	1600mm
轴向长度(含引线)Axial length(including led wire)	850mm	1250mm	1550mm	1750mm
外径MAX QD(Max)	800mm	800mm	800mm	1000mm
内径MIN(Min)	100mm	100mm	130mm	130mm
线圈形式Coin shape	圆形/矩形Round/Rectangular
线圈材料Coil material
材质Material	铜箔/铝箔Copper foil/Aluminum foil
宽度Width	800mm	1100mm	1400mm	1600mm
厚度Thickness	铜箔Copper foil:0.2-2mm铝箔Aluminum foil:0.5-3.0mm
开卷机Uncoiler
承料筒有效长度Rack shelf useful length	850mm	1150mm	1450mm	1650mm
承料筒胀缩大Rack shelf swell-shrink size	0400-0540	0400-0540	0400-0540	0400-0540
承料筒承载Rack shelf load bearing	1500kg	2000kg	2500kg	3000kg
张紧力Swelling force	0-10000N.M	0-18000N.M	0-20000N.M	0-25000N.M
胀紧工作压力Swelling working force	0-0.6MP	0-0.6MP	0-0.6MP	0-0.6MP
卷绕机Winding machine
卷绕功率Winding powe	13KW	15KW	22KW	30KW
调速方式Speed regulation mode	变频无极调速Frequency Conversion Stepless
卷绕轴尺寸Winding spindle size	50*90(或客户要求)
卷绕速度Winding speed	0-30r/min	0-28r/min	0-20r/min	0-15r/min
焊接装置Weldingdevice
焊接方式Welding mode	TIG	TIG	TIG	TIG
焊接速度Welding speed	0-0.8m/min	0-0.8mmin	0-0.8mlmin	0-0.8m/min
剪切装置Shearing device
剪切形式Shearing mode	电动滚剪Electric rolling shear
剪切速度Shearing speed	1.5mm/min	1.5mm/min	1.5mm/min	1.5mm/min
前切长度Shearing length	800mm	1100mm	1400mm	1600mm
层绝缘开卷装置Layer insulation uncoiling device
层绝缘数量Layer insulation quantity	2	2	2	2
层绝缘外径Layer insulation roll OD	≤400mm	≤400mm	≤400mm	≤400mm
层绝缘内径Layer insulation roll ID	76mm	76mm	76mm	76mm
层绝缘宽度Layer insulation roll width	≤850	≤1150	≤1450	S1650
端绝缘装置End insulation device
数量Quantity	Sets	6Sets	6 Sets	Sets
纠偏装置Rectifying deviation device
纠偏方式Rectifying deviation mode	光电感应自动纠偏Photoelectric sensing automatic rectify deviation
纠偏精度Rectifying deviation precision	±0.4mm	±0.4mm	±0.4mm	±0.4mm
电控系统Electric system
控制方式Control mode	PLC自控方式PLC automatic control
计数数位Counting digit	0-9999.9
计数精度Counting precision	0.1匝0.1Tuns

本设备外形尺寸及重量以公司报价为准 Dimensions andweight are subject to company's quotation
